STANDARDIZED TESTS FOR CERAMIC TILES AND BRICKS
SLIPPERINES METER SR/45 (DIN EN 16165)
SLIPPERINESS METERING SR/45 MODEL
To determine the dynamic critical angle in conformity with DIN EN 16165 Annex A and Annex B standards.
(Predisposition Annex A on request)
The equipment is manufactured in accordance to DIN EN 16165, it mainly consists of an alluminium framework with one stainless steel platform with adjustable angle to accomodate the sample panel.

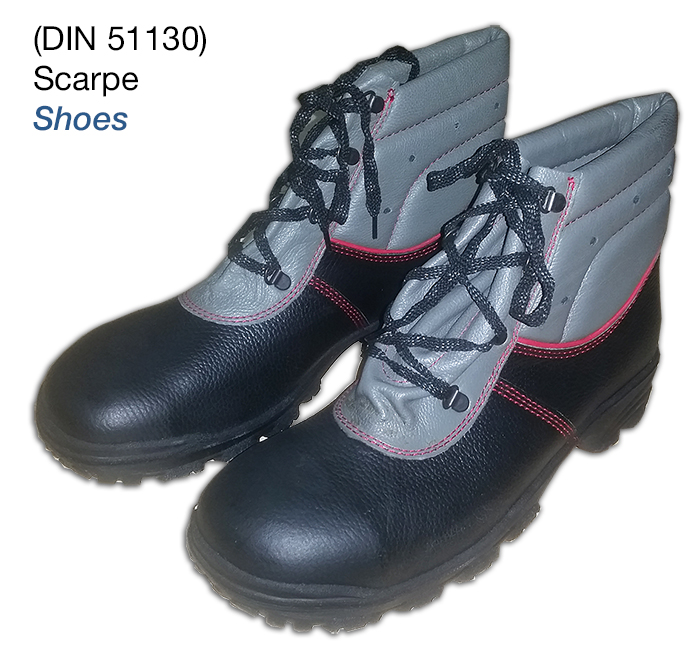

The operator, with the safety belt weared, walk back and forth on the platform while this is getting inclined at the rate of 1° per second. The movement is stopped by the operator on the critical angle of slipperiness. The test will be repeated several times near to the angle found to be critical, in order to get a more precise value that it will be confirmed and stored through the key placed on the hanging pushbutton.
Advantages
Easy us trough wizard
Acquiring of the critical angle value trough a dedicated button
Storing of the results
Storing of the operator characteristics

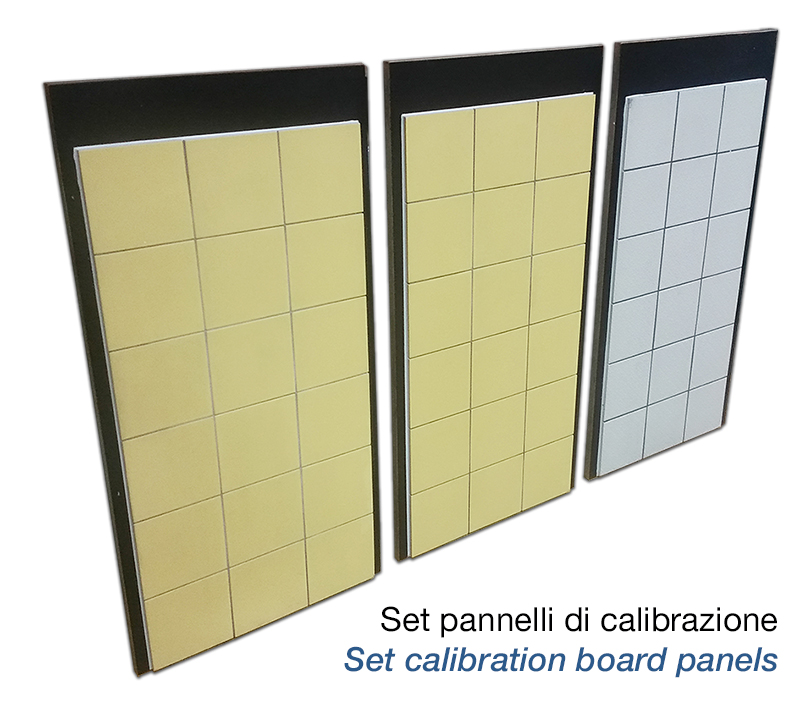

Possibility to calibrate the inclination of the platform using one electronic level
Possibility of connection to company network
