CALIBRATION PLANES

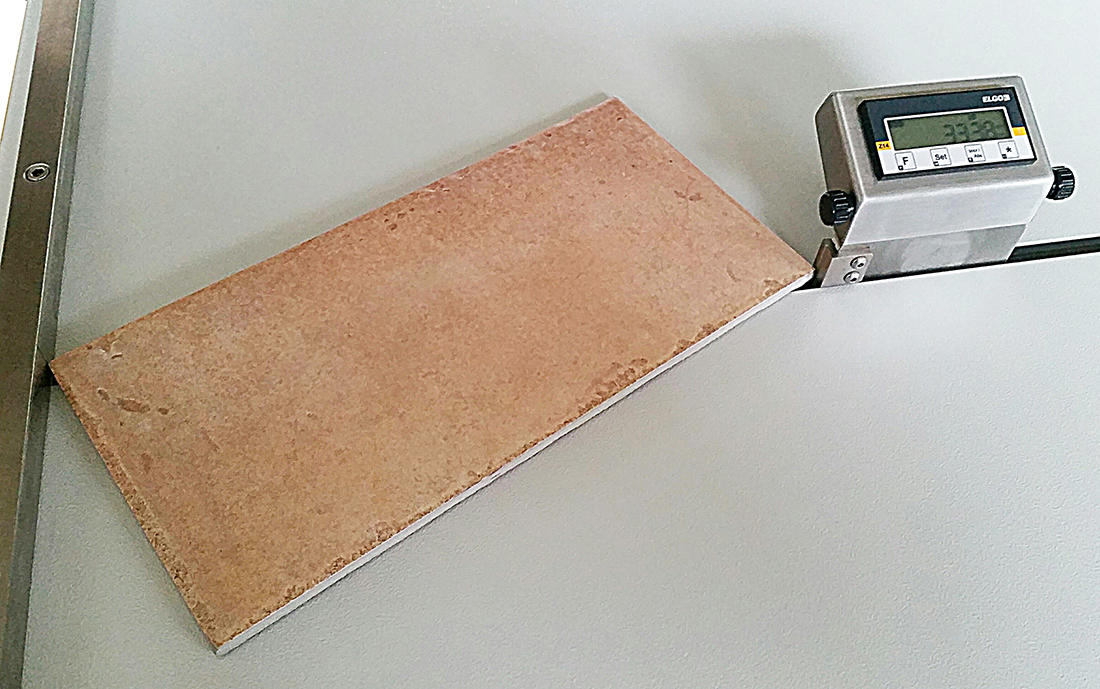

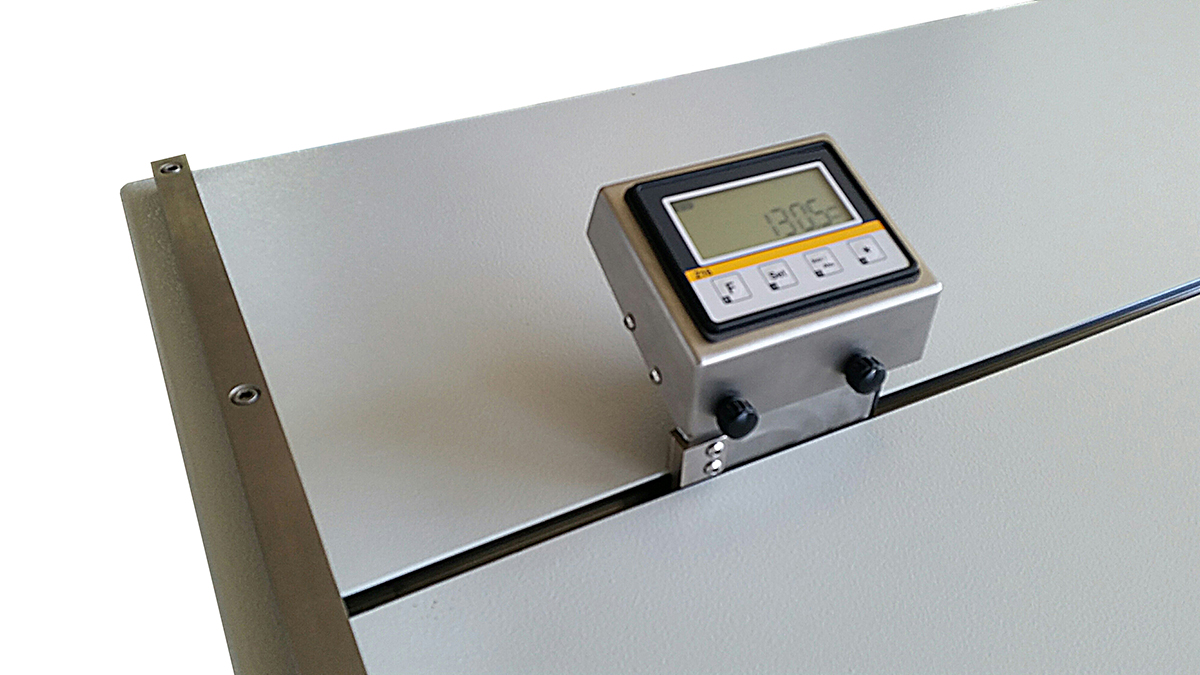

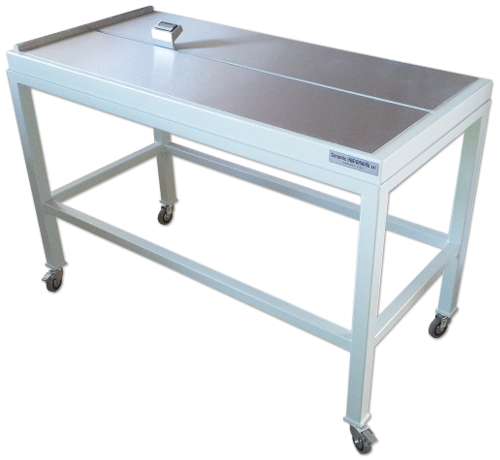

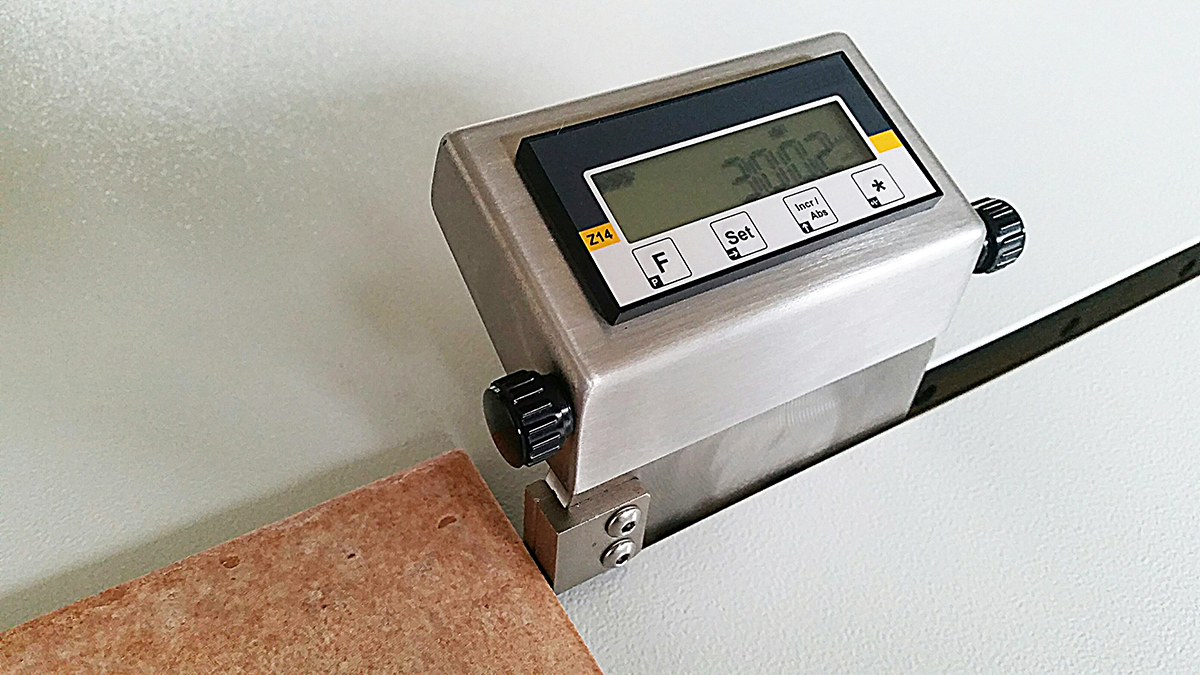

Suitable for determining the length and width of ceramic tiles . Can be used for laboratory tests or production controls at the kiln exit, sorting lines, etc. Bearing structure in epoxy painted sheet steel with stainless steel tile hold. Usable also for checking diagonal line Magnetic measuring system, with battery display integrated in the measuring cursor. Digital reading with LCD and resolution 0.1 mm. Accuracy +/- 0.1 mm. Automatic switching-off after 60 seconds of inactivity. No.2 AAA-type batteries, life up to 6 months.
